Propellers, Shafts, Rudder Systems Shipped to Bangladesh

Item

No.

Product

Description

1

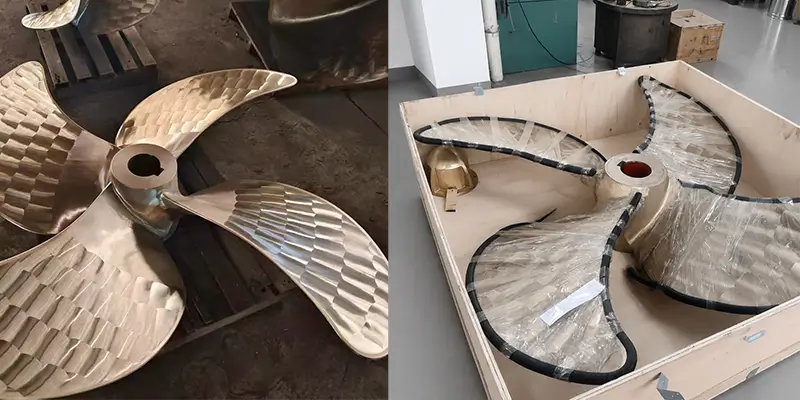

Propeller

Material: Cu3 (Nickel-Aluminium Bronze) Nos. of Blades: 4 Diameter: 2000mm; Pitch @0.7R: 1279.8mm; P/D: 0.61; Expanded Blade Area Ratio: 0.55; Direction of Rotation(for 1 Shipset): 1 LH + 1RH.

2

Propeller Cone Nut

Material: Cu3 Weight (estimated): 50kgs/as per Manufacturer Standard Certificate: Factory Mill Test report.

3

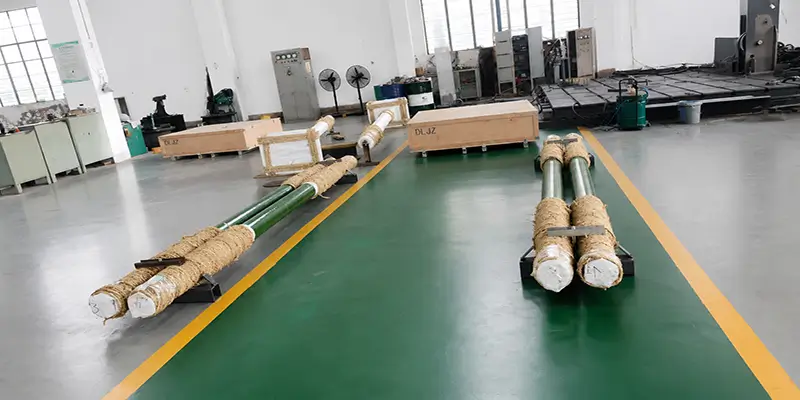

Shafting System

Propeller Shaft & components

Forged; Length: 4200 mm * Diameter : 160 mm;

Water Lub. with synthetic bearings.

4

Rudder System

Rudder Stock & components.

Forged Mild Steel;

Size: φ210×4131+800×620×40

5

Steering Gear

Piston type;

Rudder Force: 67.881KN;

Total Torque: 105 KN.M;

Driven Source: Electro-hydraulic;

Follow-up Control: Non follow-up;

Dual Hydraulic Unit (1 main + 1 standby);

Angle Indicator x2 (1 panoramic + 1 wall-mount);
