Tarpaulins, Propellers, Anchors and Anchor Chains Shipped to Bangladesh

Item

No.

Product

Description

1

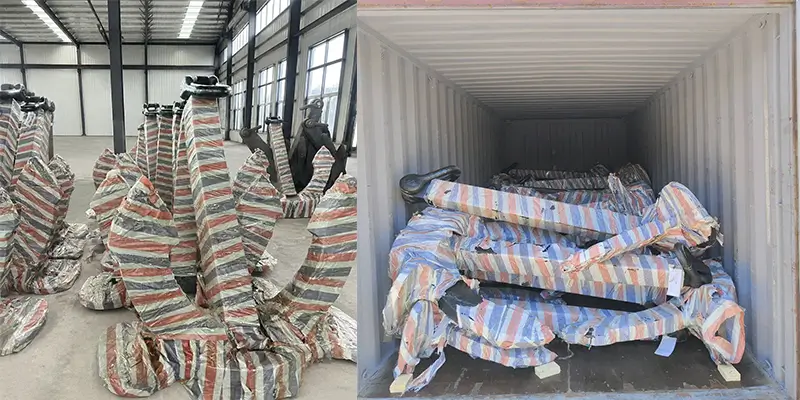

MS Anchor

Hall Type A;

Surface Finish: Black Paint;

Build By Class Standards;

Weight: 1020 Kgs ~1920 Kgs

2

Anchor D Shackle

G210 Screw Pin Type;

Surface Finish: hot-dip galvanized;

Pin Dia.: 35 ~57 mm;

Rated Working Load: 12T~35T

3

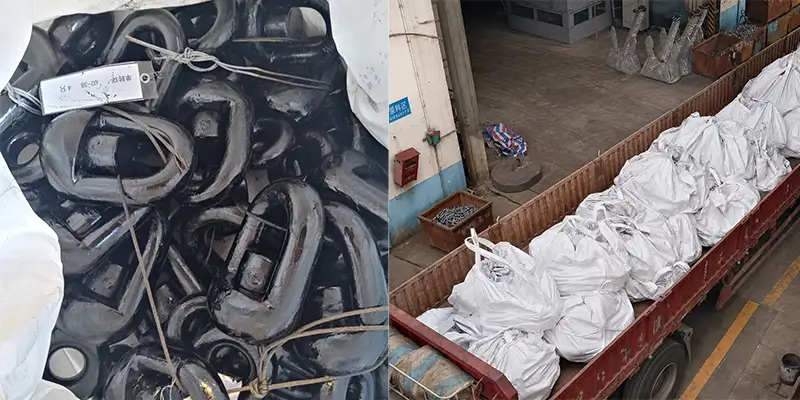

Anchor Swivel

Swivel Shackle;

Grade: U2;

Surface Finish: Black Paint;

Build By Class Standards;

-

4

Kenter shackle

Kenter Shackle;

Grade: U2;

Surface Finish: Black Paint;

Build By Class Standards;

-

5

MS Anchor Chain

Type: Stud-link;

Composition: C+...+C;

Length Per Shot: 27.5m;

Surface Finish: Black Paint;

Build By Class Standards;

Diameter: 30 mm ~52 mm

6

Nylon Rope

Material: Polymide 100%;

Strand: 12;

Diameter: 72mm;

Length Per Coil: 220 meters;

weight: abt. 700kgs;

Breaking load: 905KN;

Both ends with 2m soft eye and protected sleeve;

Certificate: BV class inspection certifricate.

7

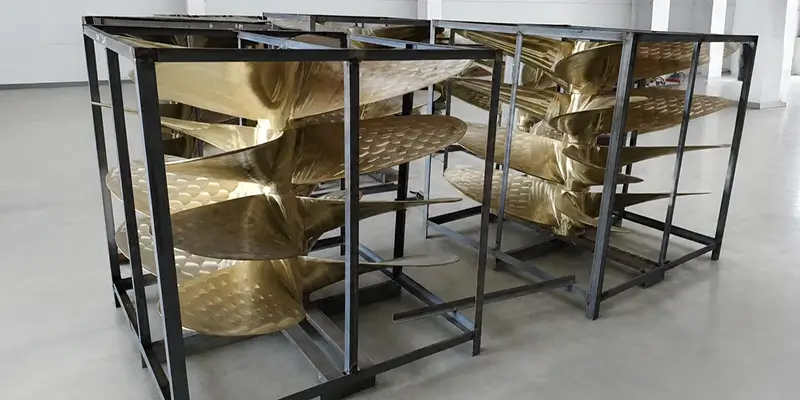

Propeller

Material: Ni-Al-Bronze (Cu3);

Number of Blades: 4;

Build By Class Standards with Confirmed Drawings;

Service of Design and Strength Calculation Included;

Diameter: 68~78”;

8

Tarpaulin

Material: Polyester Yarns + PVC Waterproof Coating ;

Density: 630g/m2;

Thikness: 0.5mm;

Size: 3mX50m per coil;

Build By Standard: BB/T0037-2012;
